| Feature |
Specification |
| Model |

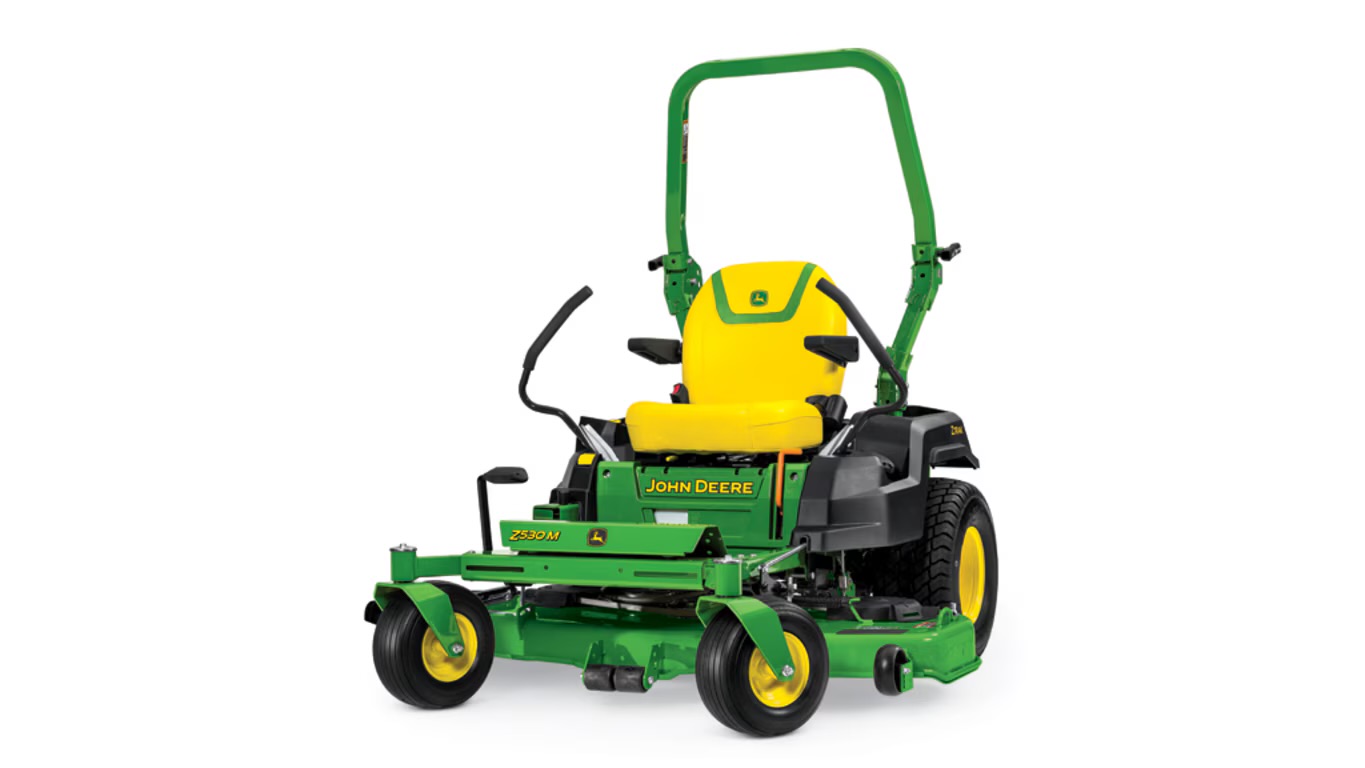

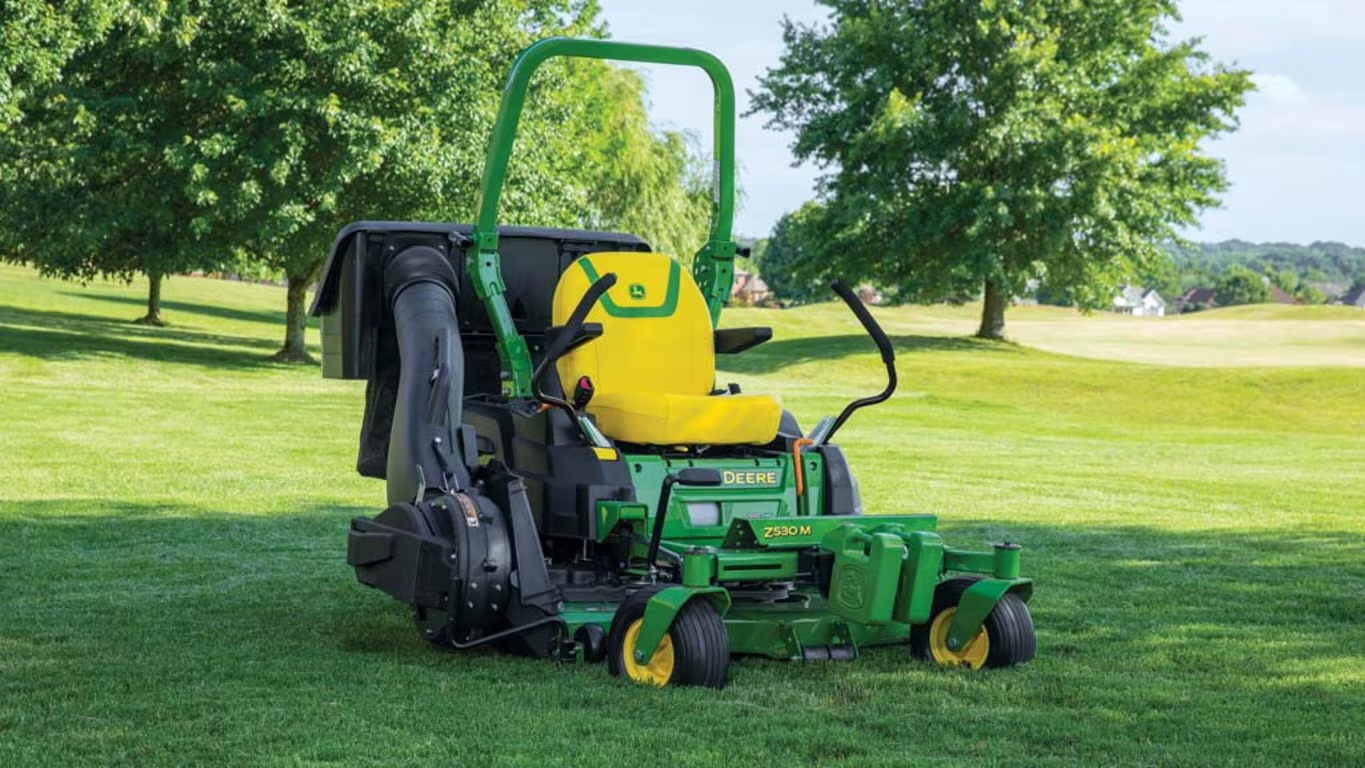

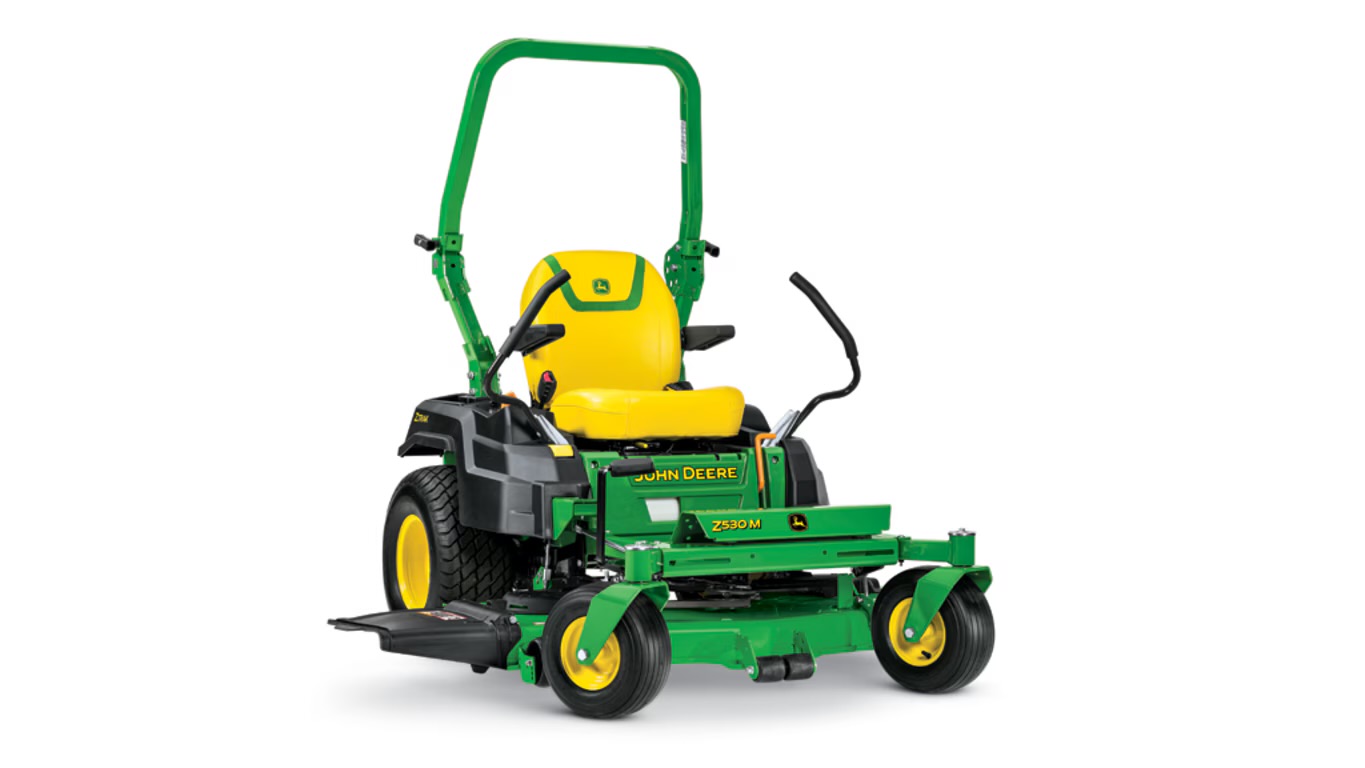

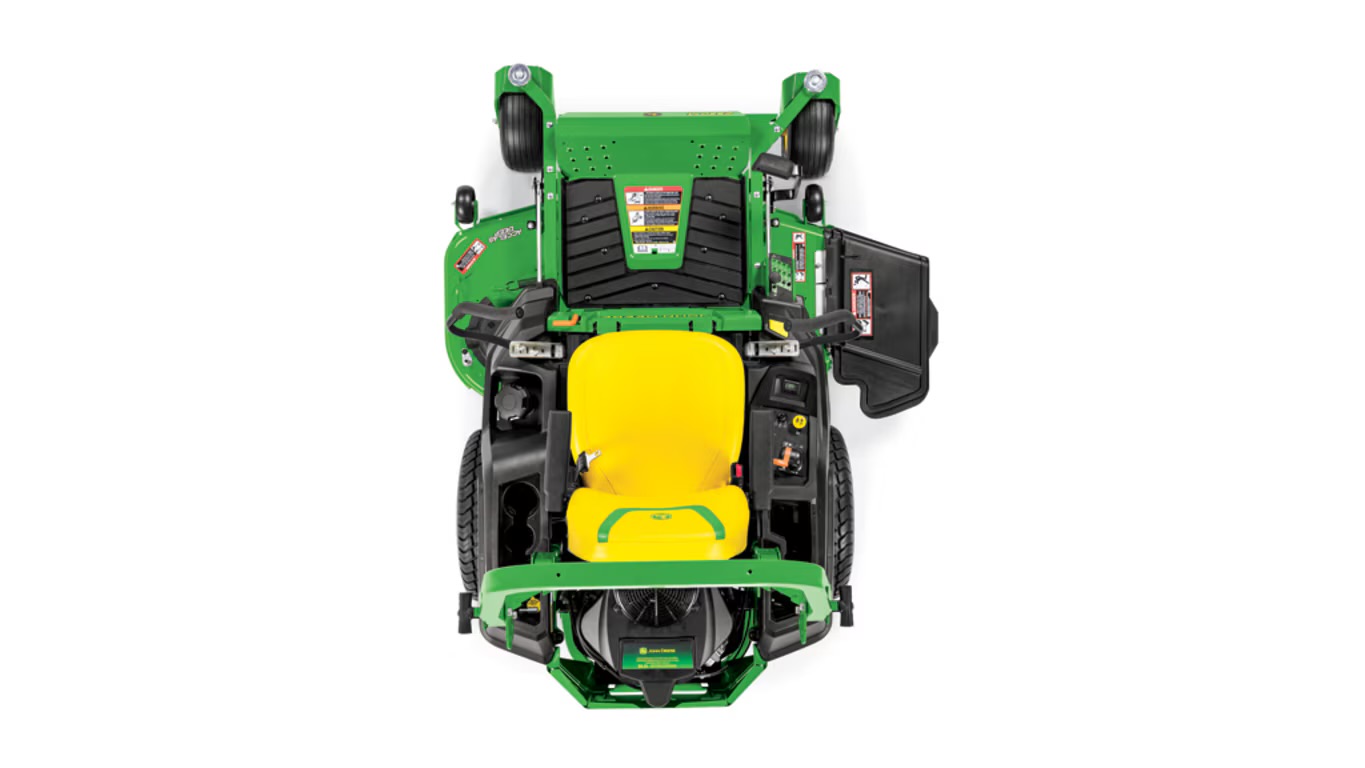

John Deere Z530M ZTrak zero-turn mower |
| Engine power |
24 hp (17.9 kW) V-twin petrol |
| Engine model |
Kawasaki FR730V, 726 cc displacement |
| Fuel system |
Petrol, full-pressure lubrication with replaceable oil filter (approx. 1.9 L oil capacity) |
| Fuel tank capacity |
17 L with electric fuel gauge and sight line |
| Transmission |
Dual hydrostatic Tuff Torq TZT7-U integrated transaxles (zero-turn) |
| Forward speed |
0-12.9 km/h (0-8 mph) |
| Reverse speed |
0-6.4 km/h (0-4 mph) |
| Steering control |
Twin adjustable motion-control levers (18 fore-aft positions) |
| Cutting width |
54” (137 cm) Accel Deep side-discharge mower deck, 3-blade |
| Deck construction |
10-gauge (3.4 mm) stamped steel with V-belt drive |

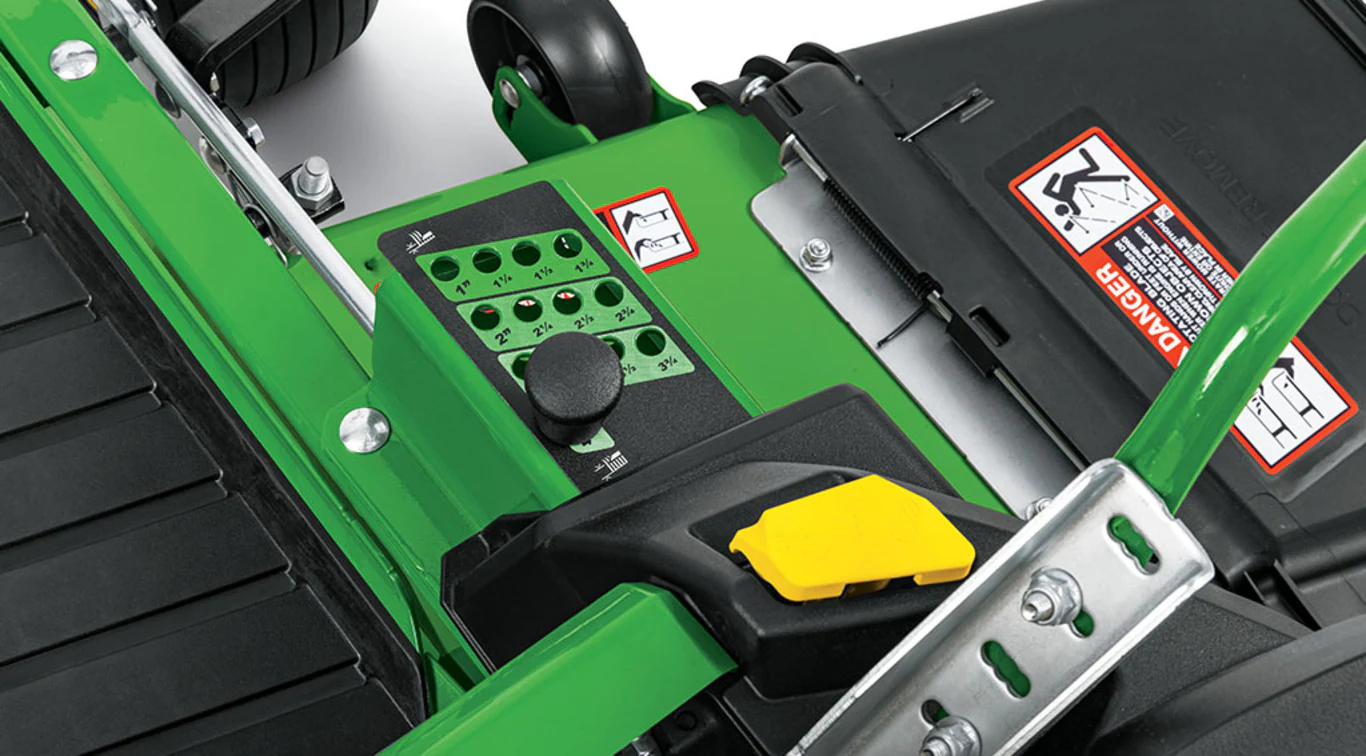

| Cutting height range |
25-102 mm (1”-4”) in 6.4 mm (0.25”) increments, foot-operated lift |
| Mulching option |
Optional MulchControl kit for 54” deck (available separately) |
| Front tyres |
13×6.5-6, sealed ball-bearing casters |
| Drive tyres |
22×9.5-10 rear turf tyres |
| Frame |
Heavy-duty welded steel frame with e-coat and powder-coat finish |
| Seat |
20” (50.8 cm) high-back seat with armrests, ComfortGlide suspension, fore-aft adjustment |
| ROPS |
Foldable rollover protective structure, height approx. 1.81 m raised |
| Wheelbase |
1250 mm |
| Overall length |
1953 mm |
| Width with 54” deck |
1742 mm with discharge deflector down; approx. 1517 mm with deflector raised for storage |
| Approx. weight |
355 kg with 54” deck and fuel |
| Maximum towing capacity |
113 kg (250 lb) |
| Warranty (residential) |
Up to 4-year / 300-hour bumper-to-bumper warranty – conditions and availability may vary by region and dealer |
