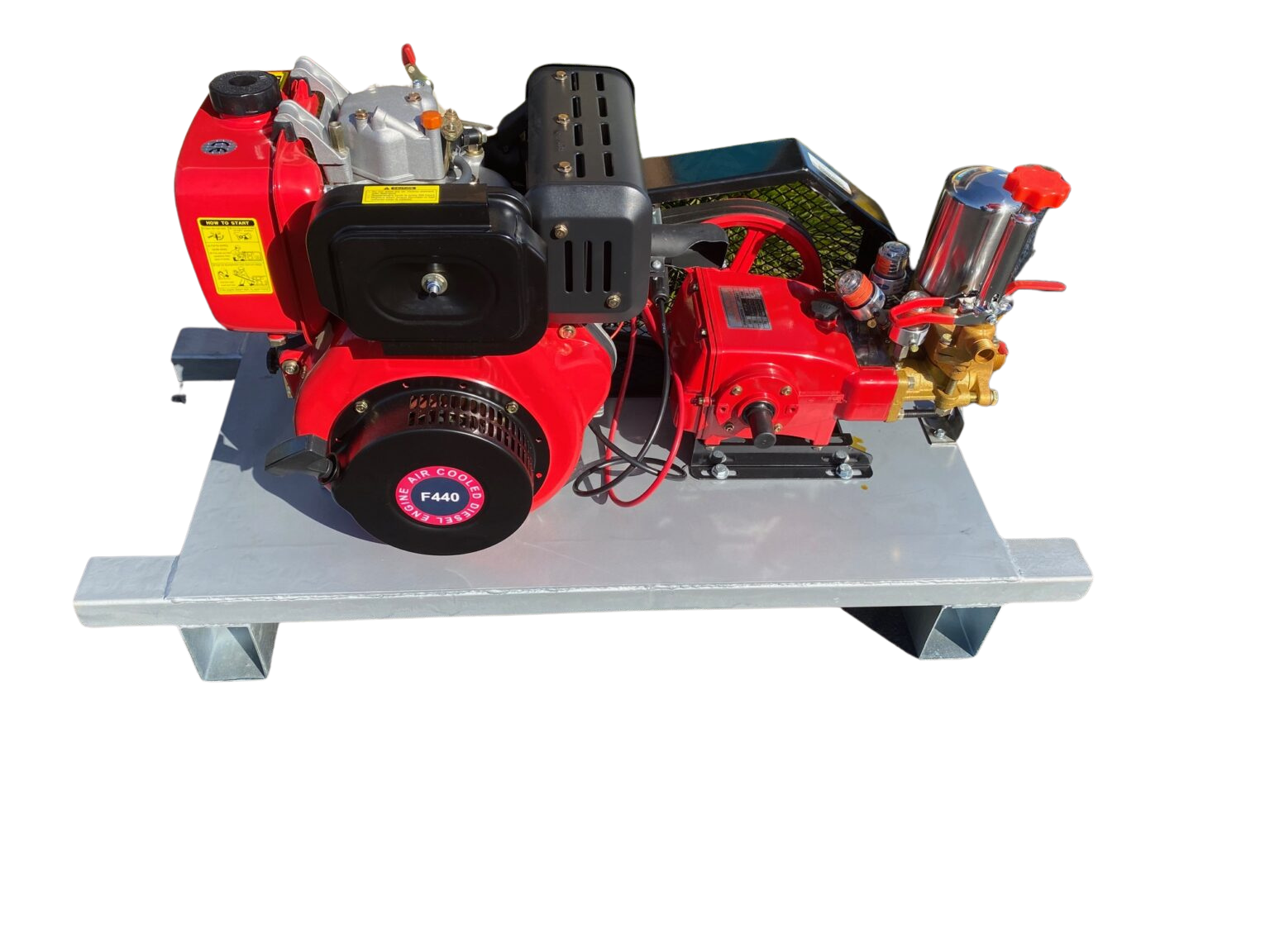

DEK W80 10HP Diesel Piston Water Pump

$4,450.00

SKU: WP2016
In stock, ready to ship

Heavy-duty diesel piston water pump package built for New Zealand spraying, irrigation and long-distance water transfer jobs. Powered by a DEK F440 electric start diesel engine, the DEK W80 includes a pick up hose, screen and return line, all mounted on a NZ made purpose-built solid steel frame with drive belt and pulleys, and is backed by a 12 month warranty.

Specification & Features

The DEK W80 10HP Diesel Piston Water Pump is built for Kiwi customers who need serious pressure and dependable diesel performance for spraying, irrigation and long-distance water movement. The live product page lists it as DEK W80 10HP DIESEL – PISTON WATER PUMP, with SKU WP2016, and notes it is in stock, ready to ship.

This complete pump package includes the DEK F440 electric start diesel engine, pick up hose, screen and return line, plus drive belt and pulleys, all supplied on a NZ made purpose-built solid steel frame. The page says it is purpose built for pumping water long distances up to a height of 300m, as well as spraying and irrigating large areas, including greenhouse irrigation, vineyards, orchards, fertiliser or weed killing, frost protection and boom spraying.

The Davies / MacEwan style pump features an alloy crankcase with stainless steel sleeved brass pump body, runs at low 1000rpm for durability, and uses 3 pistons for smooth pressure and flow. It also has a DEK Auto Lube System and an oil level indicator. Pump performance on the page is listed as 300m head height, 66LPM open flow, 40-bar irrigation pressure (580psi), and 20/45 bar spraying pressure or 290psi, with max 600psi. It also includes a stainless steel pressure tank and the complete unit measures 1m long x 350mm wide x 350mm high.

The page also says the unit is started, oiled and tested in the workshop prior to delivery, and that Collingwoods carries spare parts and does servicing in Hamilton. It is backed by a 12 month warranty. For shipping, the page says it is shipped on a pallet and must go to an urban business address, with home delivery available by quote.

Specification Detail
Brand DEK
Product name W80 10HP Diesel – Piston Water Pump
SKU WP2016
Product type Positive displacement piston water pump
Pump style Davies / MacEwan style pump
Included DEK F440 electric start diesel engine, pick up hose, screen, return line, drive belt and pulleys
Frame NZ made purpose-built solid steel frame
Crankcase Alloy crankcase
Pump body Stainless steel sleeved brass pump body
Pump speed Low 1000rpm
Pistons 3 pistons
Lubrication DEK Auto Lube System fitted
Oil level indicator Yes
Head height 300m
Open flow 66LPM / 4000LPH
Irrigation pressure 40-bar / 580psi
Spraying pressure 20/45 bar or 290psi
Maximum pressure 600psi max
Pressure tank Stainless steel pressure tank
Dimensions 1m long x 350mm wide x 350mm high
Engine model DEK F440
Starting system Electric start or recoil
Fuel tank capacity 5.5 litres
Bearing quality NSK or NTN bearings
Standard ISO 9002
Pre-delivery Started, oiled and tested in workshop prior to delivery
Servicing Spare parts and in-house servicing available in Hamilton
Warranty 12 month warranty
Shipping note Shipped on a pallet, must go to an urban business address, home delivery by quote
